Migrate On-premises Milvus to Relyt

This guide offers best practices for migrating data from a local Milvus cluster to the DW service units of the Vector edition using Python.

Prerequisites

Your Milvus cluster is version 2.3.x or later.
Python 3.8 or higher has been installed.
The following Python libraries have been installed:
- psycopg2
- pymilvus-2.3.0
- pyaml
- tqdm
If not, run the following commands to install them:
```
pip install psycopg2
pip install pymilvus==2.3.0
pip install pyaml
pip install tqdm
```

Migrate a Milvus database to Relyt

Step 1. Export Milvus data

Create an export script named export.py and an export configuration file named milvus2csv.yaml, along with an output directory named output.

info

The names of the export script, configuration file, and output directory are for reference only and can be adjusted as needed.

Following is content of the export script export.py:

import yaml
import json
from pymilvus import (
    connections,
    DataType,
    Collection,
)
import os
from tqdm import tqdm

with open("./milvus2csv.yaml", "r") as f:
    config = yaml.safe_load(f)

print("configuration:")
print(config)

milvus_config = config["milvus"]

milvus_type_to_relyt_type = {
    DataType.BOOL: "bool",
    DataType.INT8: "smallint",
    DataType.INT16: "smallint",
    DataType.INT32: "integer",
    DataType.INT64: "bigint",

    DataType.FLOAT: "real",
    DataType.DOUBLE: "double precision",

    DataType.STRING: "text",
    DataType.VARCHAR: "varchar",
    DataType.JSON: "json",

    DataType.BINARY_VECTOR: "bvector",
    DataType.FLOAT_VECTOR: "vector",
    DataType.FLOAT16_VECTOR: "vecf16",
    DataType.SPARSE_FLOAT_VECTOR: "svector",
}


def convert_to_binary(binary_data):
    decimal_value = int.from_bytes(binary_data, byteorder='big')
    binary_string = bin(decimal_value)[2:].zfill(len(binary_data) * 8)
    return ','.join(list(binary_string))


def data_convert_to_str(data, dtype, delimeter):
    if dtype == DataType.BOOL:
        return "1" if data else "0"
    elif dtype in [DataType.INT8, DataType.INT16,
                   DataType.INT32, DataType.INT64,
                   DataType.FLOAT, DataType.DOUBLE]:
        return str(data)
    elif dtype in [DataType.STRING, DataType.VARCHAR]:
        return str(data).replace(delimeter, f"\\{delimeter}").replace("\"", "\\\"")
    elif dtype == DataType.JSON:
        return str(data).replace(delimeter, f"\\{delimeter}").replace("\"", "\\\"")
    elif dtype in [DataType.FLOAT_VECTOR, DataType.SPARSE_FLOAT_VECTOR, DataType.FLOAT16_VECTOR, DataType.BINARY_VECTOR]:
        return "[" + data[1:-1] + "]"

    Exception(f"Unsupported DataType {dtype}")


def csv_write_rows(datum, fd, fields_types, delimiter="|"):
    for data in datum:
        for i in range(len(data)):
            ftype = fields_types[i]
            data[i] = data_convert_to_str(data[i], ftype, delimiter)
        fd.write(delimiter.join(data) + "\n")


def csv_write_header(headers, fd, delimiter="|"):
    fd.write(delimiter.join(headers) + "\n")


def dump_collection(collection_name: str):
    results = []
    file_cnt = 0
    print("connecting to milvus...")
    connections.connect("default", **milvus_config)

    export_config = config["export"]
    collection = Collection(collection_name)
    collection.load()
    tmp_path = os.path.join(export_config["output_path"], collection_name)
    if not os.path.exists(tmp_path):
        os.mkdir(tmp_path)
    enable_dynamic_field = collection.schema.enable_dynamic_field
    if enable_dynamic_field:
        print("Dynamic field is enabled, there may be additional schemas for data.")
        res = collection.query(expr='', output_fields=["*"], limit=1)
        if len(res[0]) != len(collection.schema.fields):
            print("The schema of the collection is not consistent with the schema of the data. "
                  "Please check the schema of the collection and the schema of the data.")
            print(f"The schema of the collection is:{res}")

    fields_meta_str = ""
    fields_types = []
    headers = []
    for schema in collection.schema.fields:
        print(schema)
        fields_types.append(schema.dtype)
        headers.append(schema.name)
        if len(fields_meta_str) != 0:
            fields_meta_str += ","
        fields_meta_str += f"{schema.name} {milvus_type_to_relyt_type[schema.dtype]}"
        if schema.dtype == DataType.VARCHAR and "max_length" in schema.params.keys():
            fields_meta_str += f"({schema.params['max_length']})"
        if schema.dtype in [DataType.FLOAT_VECTOR, DataType.SPARSE_FLOAT_VECTOR, DataType.FLOAT16_VECTOR, DataType.BINARY_VECTOR]:
            fields_meta_str += f"({schema.params['dim']})"
        if schema.is_primary:
            fields_meta_str += " PRIMARY KEY"

    create_table_sql = f"CREATE TABLE {collection.name} " \
                       f" ({fields_meta_str}) using heap;"

    with open(os.path.join(export_config["output_path"], collection_name, "create_table.sql"), "w") as f:
        f.write(create_table_sql)

    print(create_table_sql)

    print(headers)

    total_num = collection.num_entities
    collection.load()
    query_iterator = collection.query_iterator(batch_size=1000, expr="", output_fields=headers)

    def write_to_csv_file(col_names, data):
        if len(results) == 0:
            return
        nonlocal file_cnt
        assert(file_cnt <= 1e9)
        output_file_name = os.path.join(export_config["output_path"], collection_name, f"{str(file_cnt).zfill(10)}.csv")
        with open(output_file_name, "w", newline="") as csv_file:
            # write header
            csv_write_header(col_names, csv_file)
            # write data
            csv_write_rows(data, csv_file, fields_types)
            file_cnt += 1
            results.clear()

    with tqdm(total=total_num, bar_format="{l_bar}{bar}| {n_fmt}/{total_fmt}") as pbar:
        while True:
            res = query_iterator.next()
            if len(res) == 0:
                print("Query iteration finished, closing...")
                query_iterator.close()
                break
            for row in res:
                row_list = []
                for i in range(len(headers)):
                    field = row[headers[i]]
                    if isinstance(field, list) and fields_types[i] != DataType.BINARY_VECTOR:
                        row_list.append("{" + ", ".join(str(x) for x in field) + "}")
                    elif isinstance(field, dict):
                        row_list.append(json.dumps(field, ensure_ascii=False))
                    else:
                        row_list.append(field)
                results.append(row_list)
                if len(results) >= export_config["max_line_in_file"]:
                    write_to_csv_file(headers, data=results)
                pbar.update(1)

    write_to_csv_file(headers, data=results)


if __name__ == "__main__":
    for name in config["export"]["collections"]:
        dump_collection(name)

Following is the content of the export configuration file milvus2csv.yaml:

milvus:
   uri: 'http://<host_name>'
   user: '<username>'        # Username
   password: '<password>'    # Password
   db_name: '<db_name>'      # Milvus database name
   token: '<your_token>'     # Access token

export:
   collections:
      - 'demo_collection'
      - 'customized_setup'
      - 'demo_collection2'
    # - 'hello_milvus'
    # - 'car'
    # - 'medium_articles_with_dynamic'
    # List all collections to export
   max_line_in_file: 40000     # The max number of lines per file for export
   output_path: './output'     # Export destination directory, e.g., ./output

Save export script export.py, export configuration file milvus2csv.yaml, and output directory output into the same directory.

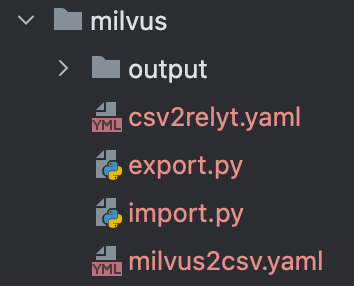

The directory structure is as shown in the following picture.
Modify the milvus2csv.yaml configuration file based on your Milvus cluster details.
Run the Python script and check the output.

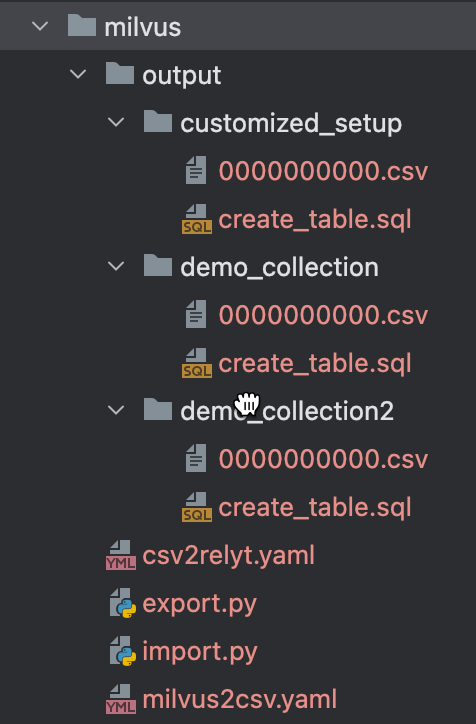

The output structure is as shown in the following picture.

Step 2. Import data into a Relyt Vector database

Create an import script named import.py and an import configuration file named csv2relyt.yaml, and prepare the data to be imported (the output directory obtained in Step 1).

info

The names of the import script and configuration file are just examples and can be adjusted as needed.

Following is the content of import script import.py:

import psycopg2
import yaml
import glob


import os

if __name__ == "__main__":
    with open('csv2relyt.yaml', 'r') as config_file:
        config = yaml.safe_load(config_file)

    print("current config:" + str(config))

    db_host = config['database']['host']
    db_port = config['database']['port']
    db_name = config['database']['name']
    schema_name = config['database']['schema']
    db_user = config['database']['user']
    db_password = config['database']['password']
    data_path = config['data_path']

    conn = psycopg2.connect(
        host=db_host,
        port=db_port,
        database=db_name,
        user=db_user,
        password=db_password,
        options=f'-c search_path={schema_name},public'
    )

    cur = conn.cursor()

    # check schema
    cur.execute("SELECT schema_name FROM information_schema.schemata WHERE schema_name = %s", (schema_name,))
    existing_schema = cur.fetchone()
    if existing_schema:
        print(f"Schema {schema_name} already exists.")
    else:
        # create schema
        cur.execute(f"CREATE SCHEMA {schema_name}")
        print(f"Created schema: {schema_name}")

    for table_name in os.listdir(data_path):
        table_folder = os.path.join(data_path, table_name)
        print(f"Begin processing table: {table_name}")
        if os.path.isdir(table_folder):
            create_table_file = os.path.join(table_folder, 'create_table.sql')
            with open(create_table_file, 'r') as file:
                create_table_sql = file.read()
            try:
                cur.execute(create_table_sql)
            except psycopg2.errors.DuplicateTable as e:
                print(e)
                conn.rollback()
                continue
            print(f"Created table: {table_name}")

            cnt = 0
            csv_files = glob.glob(os.path.join(table_folder, '*.csv'))
            for csv_file in csv_files:
                with open(csv_file, 'r') as file:
                    copy_command = f"COPY {table_name} FROM STDIN DELIMITER '|' HEADER"
                    cur.copy_expert(copy_command, file)
                cnt += 1
                print(f"Imported data from: {csv_file} | {cnt}/{len(csv_files)} file(s) Done")

        conn.commit()
        print(f"Finished importing table: {table_name}")
        print(' # ' * 60)

    cur.close()
    conn.close()

Following is the content of import configuration file csv2relyt.yaml:

database:
  host: "<host_name>"                # The host name of the target DW service unit of the Vector edition for public access.
  port: 5432                       # The port number.
  name: "<database_name>"           # The name of the Relyt vector database.
  user: "<username>"               # The username of the Relyt cloud account or DW user.
  password: "<password>"           # The password.
  schema: "public"                 # The name of the schema in the Relyt vector database to which data is imported, for example public. If the specified schema does not exist, it will automatically be created.

data_path: "./output"              # The path to the data to import.

Configure the csv2relyt.yaml configuration file based on your Relyt DW service unit information.
Run the Python script.
Check the database in the DW service unit of the Vector edition to ensure the data has been imported correctly.
Recreate the required indexes. For detailed instructions, see Indexing.
