Run Vector Analysis Queries

This topic aims to guide you through the process of getting started with vector searches.

Prerequisites​

  • At least one DW service unit for vectors is available in the environment.

  • The target table and data already exist in the target database. For instructions on how to import data into the database, refer to Import Data.

  • You have obtained the username and password to log in to the DW service unit for vectors.

Vector analysis examples​

Here are some example queries for calculating the squared Euclidean distance.

Q1: Find the 10 vectors closest to the target vector​

SELECT id,
vector <-> '[0.6377800107002258,0.9509999752044678,0.9408400058746338,-0.5509499907493591,0.06180400028824806,-1.6734999418258667,-0.5704600214958191,-1.5750000476837158,0.5274199843406677,-0.3642300069332123,0.5622000098228455,0.009283199906349182,0.391759991645813,0.46647000312805176,-0.7589899897575378,0.3084399998188019,0.4611699879169464,0.30028998851776123,1.5491000413894653,1.2386000156402588,-0.7254599928855896,1.7488000392913818,0.4075799882411957,-1.96589994430542,0.05322200059890747]'
AS dist FROM test_tbl ORDER BY dist LIMIT 10;

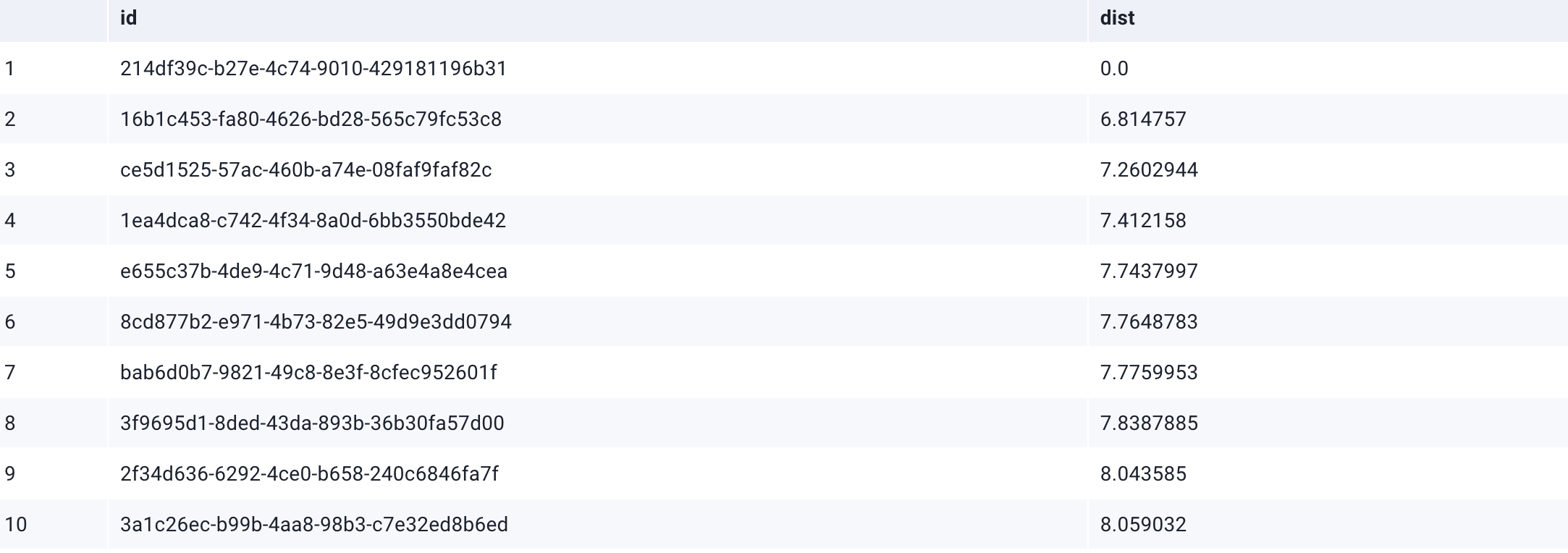

If you run this command in the console workbook, the results will appear as shown below:

Q2: Query the top 20 most similar data entries from August 8th to 15th, using the formula dist * 10 to calculate similarity, and return only those with a similarity score above 67​

SELECT b.* FROM (SELECT a.id, a.dist * 10 AS similarity FROM
(SELECT id,
vector <-> '[0.6377800107002258,0.9509999752044678,0.9408400058746338,-0.5509499907493591,0.06180400028824806,-1.6734999418258667,-0.5704600214958191,-1.5750000476837158,0.5274199843406677,-0.3642300069332123,0.5622000098228455,0.009283199906349182,0.391759991645813,0.46647000312805176,-0.7589899897575378,0.3084399998188019,0.4611699879169464,0.30028998851776123,1.5491000413894653,1.2386000156402588,-0.7254599928855896,1.7488000392913818,0.4075799882411957,-1.96589994430542,0.05322200059890747]'
AS dist FROM test_tbl
WHERE post_publish_time >= '2024-08-08 00:00:00'
AND post_publish_time <= '2024-08-15 10:52:00'
ORDER BY dist ASC LIMIT 5000) AS a) AS b  WHERE b.similarity > 67  OFFSET 0 LIMIT 20;

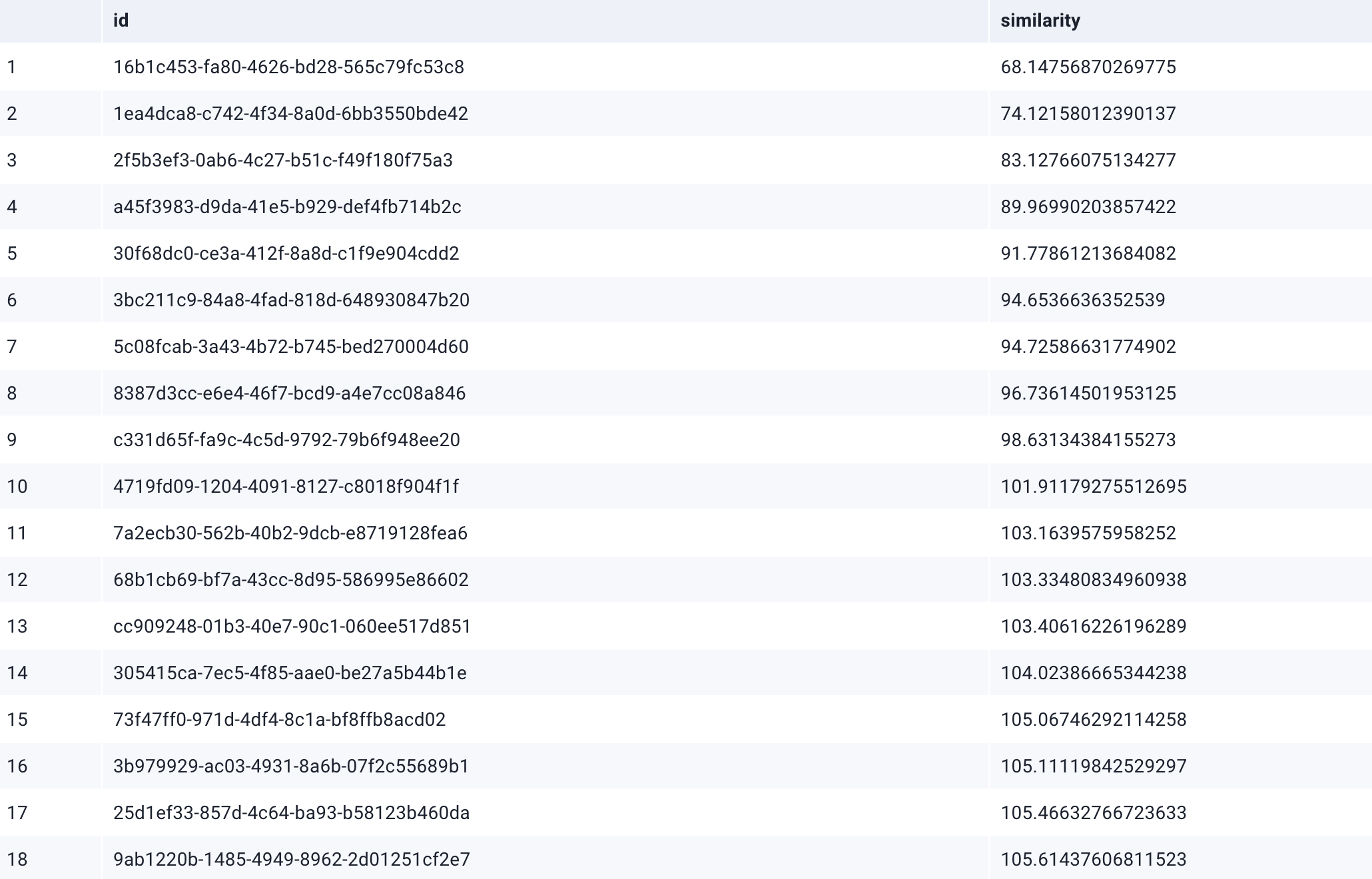

If you run this command in the console workbook, the results will appear as shown below:
